Tipping trailer single axle
Standard version
- 1 axle Colaert #130/10 brakes 406x140 (other axles in option)
- No suspension on the axle and drawbar (Suspension on the drawbar is an option)
- Detacheble extension (option)
- See-through grill with Perspex
- Loading space made of steel with high elasticit - Floor plate 5 mm / Side walls 4 mm
- Profiled side walls
- Rope hooks to fix a cover
- Hydraulic rear door 1-part
- 1 grain chute in the middle of the door
- Galvanized ladder and bumper
- Hydraulic tipping with oil from the tractor
- Air brakes
- Lighting
- Swiveling hitching eyelet
- Tires 1400 R 20
- Sandblasted before painting
- 2 component primer + 2 Componenten high quality lacquer
- Legally permitted speed on public roads max. 30 km / h
TechnicAL DATA
| Type | Charge* | Dimensions LxBxH*(mm) | Volume Water | Volume SAE | Brakes | Axle | Tipping cylinder (l) |
| D7S D10S D12M | 7 000kg 10000kg 12000kg | 4200x2300 x1000 4700x2300 x1000 5200x2300 x1200 | 10 m3 11 m3 14 m3 | 12 m3 13 m3 17 m3 | 420x140 420x140 420x140 | #130/10 #130/10 #130/10 | 16 16 20 |
*Load = technical load capacity indicated by DEZEURE. The legally permitted load can vary from country to country where the customer is located.
*All Diminsions container dimensions are measured internally. *Deviating equipment / container dimensions on request
*Volume SAE = volume water + content cup

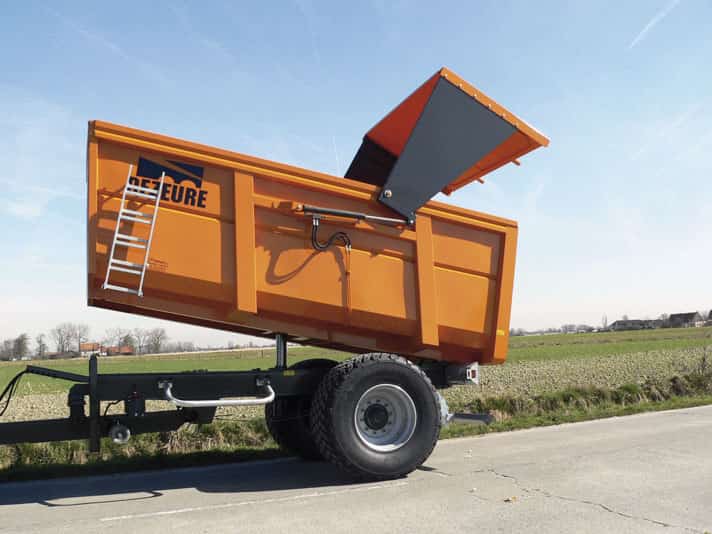

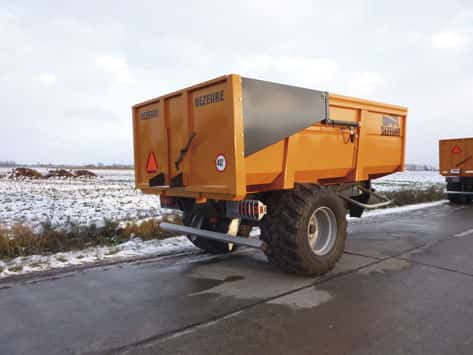

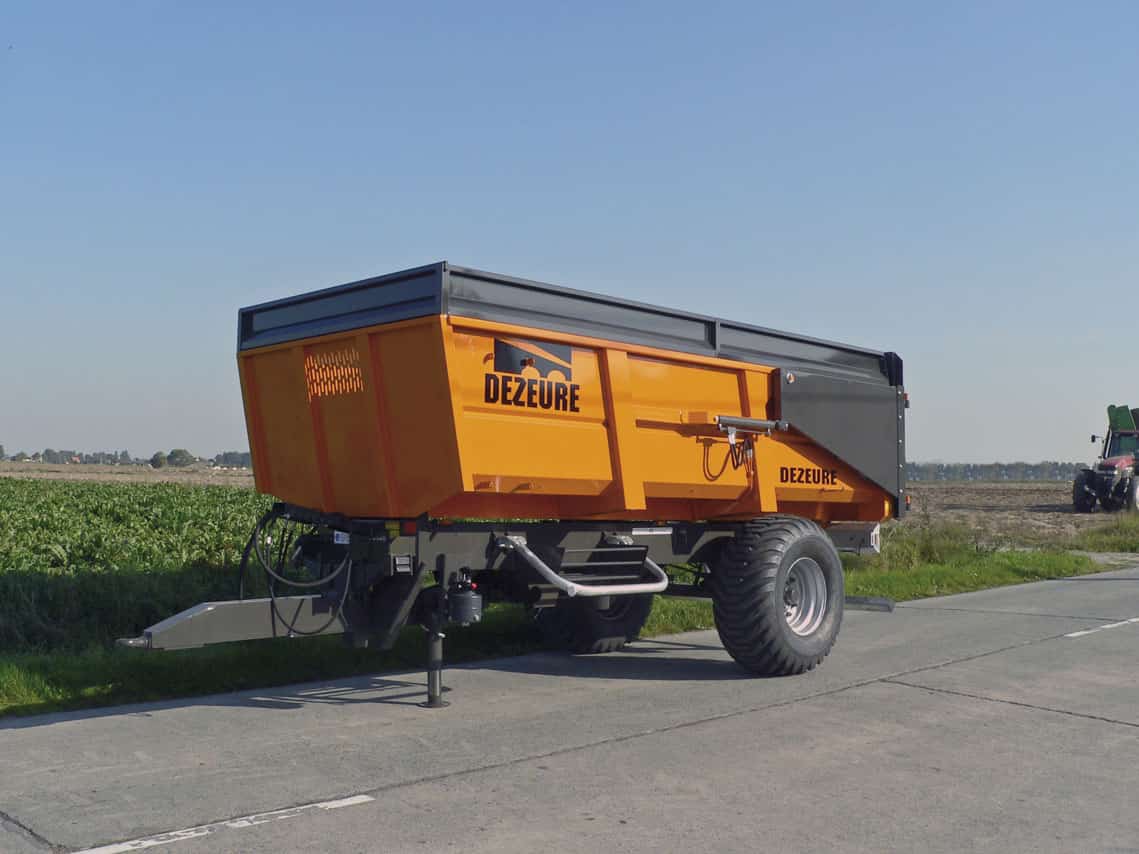

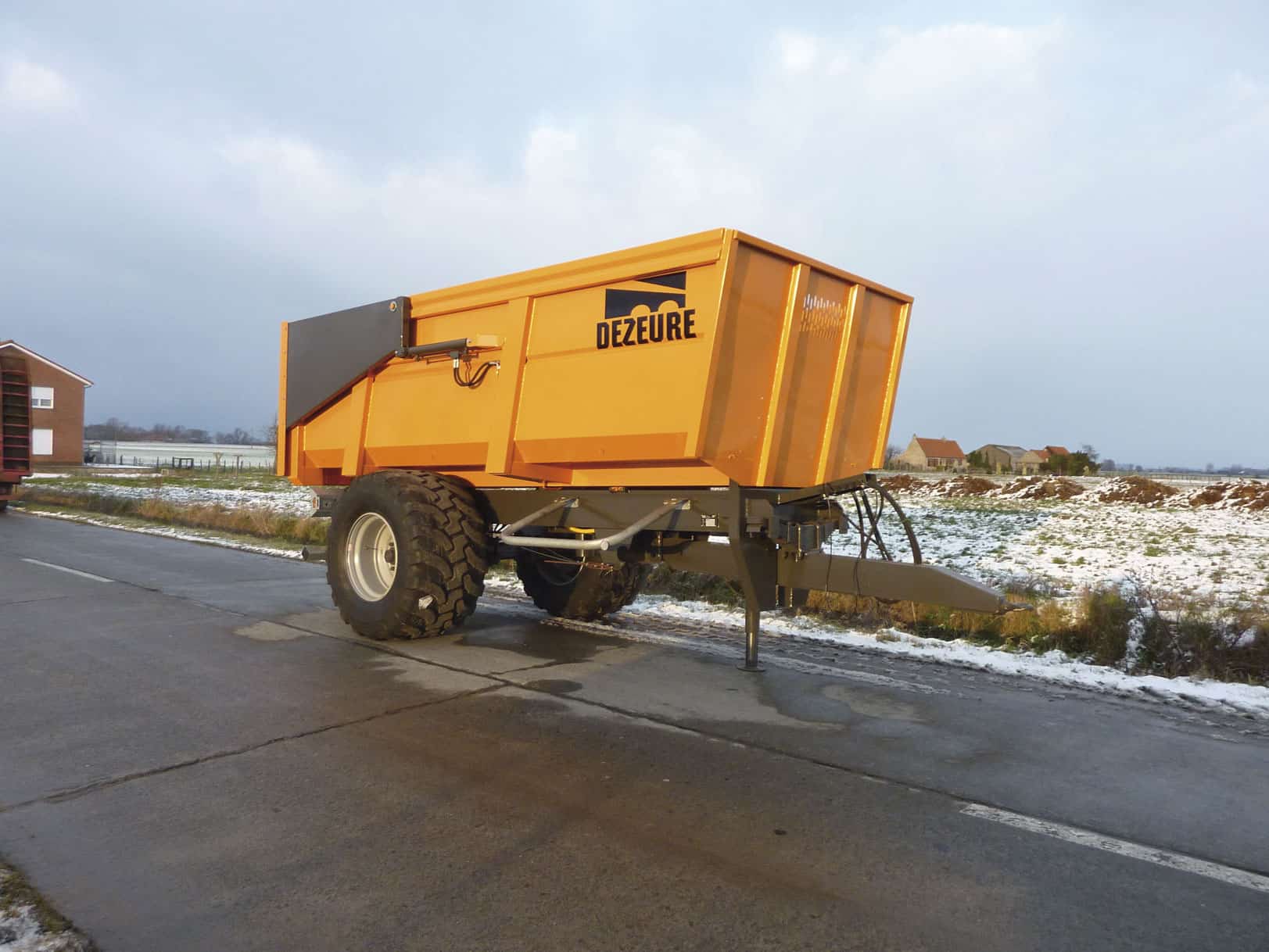

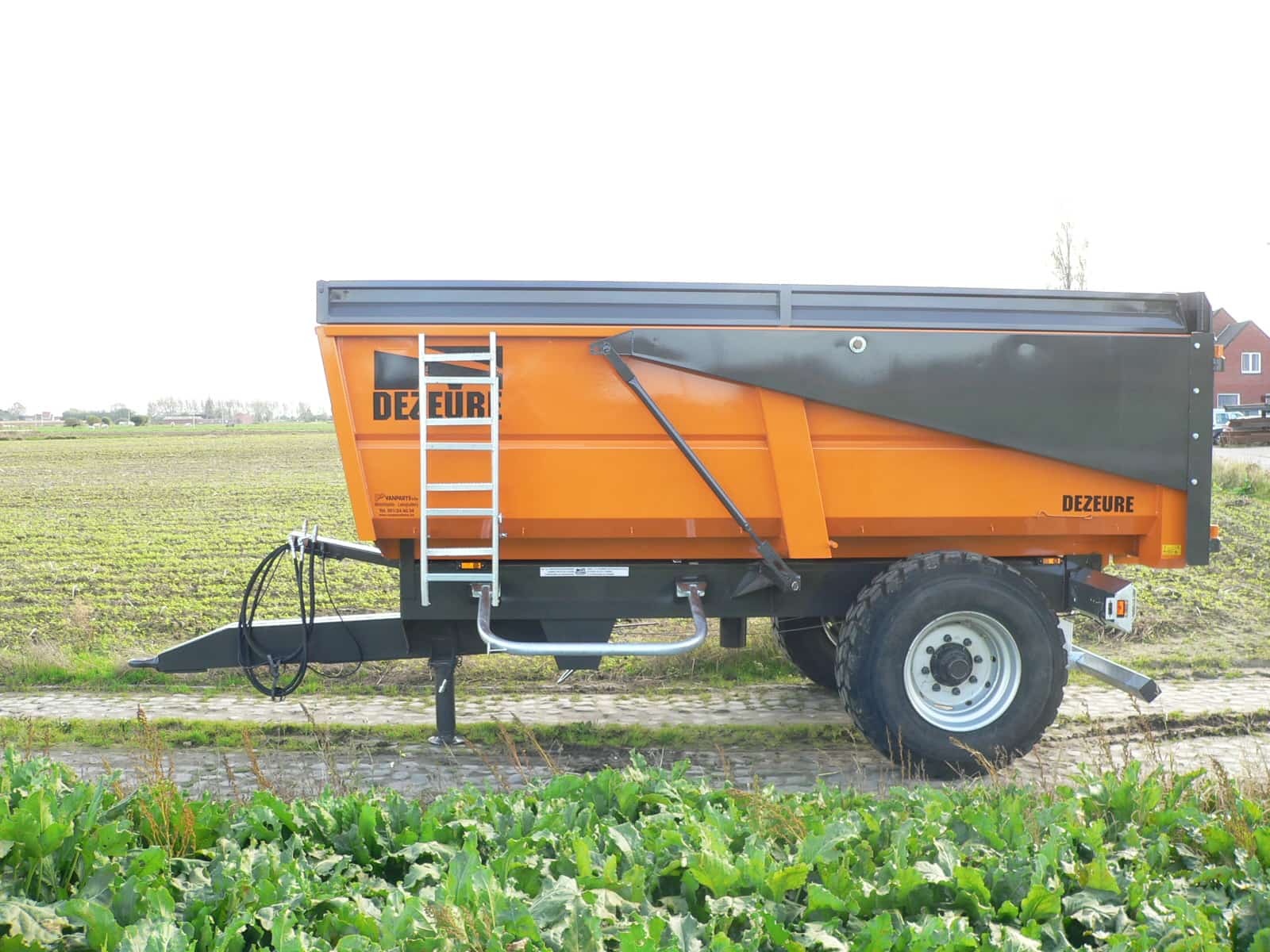

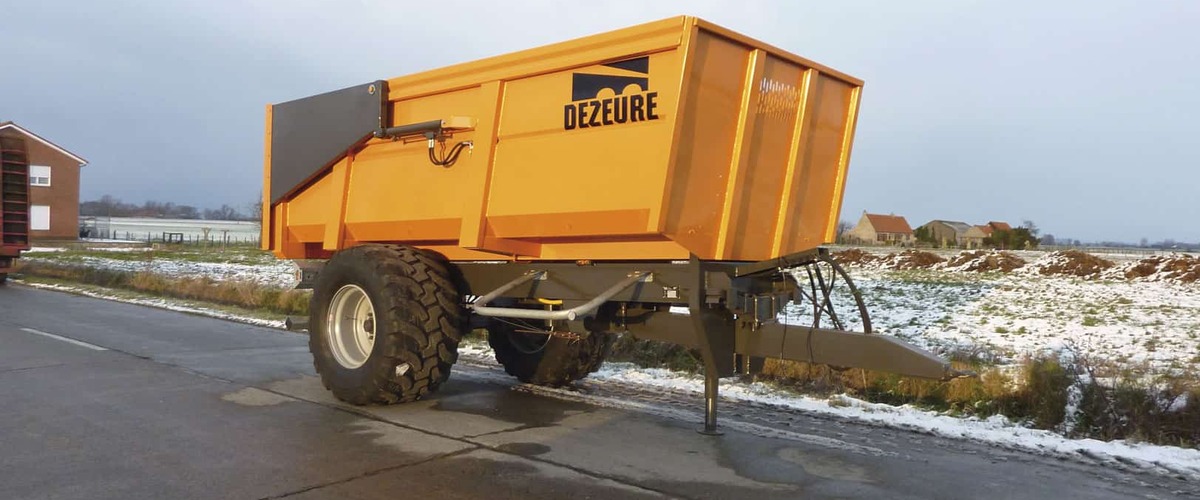

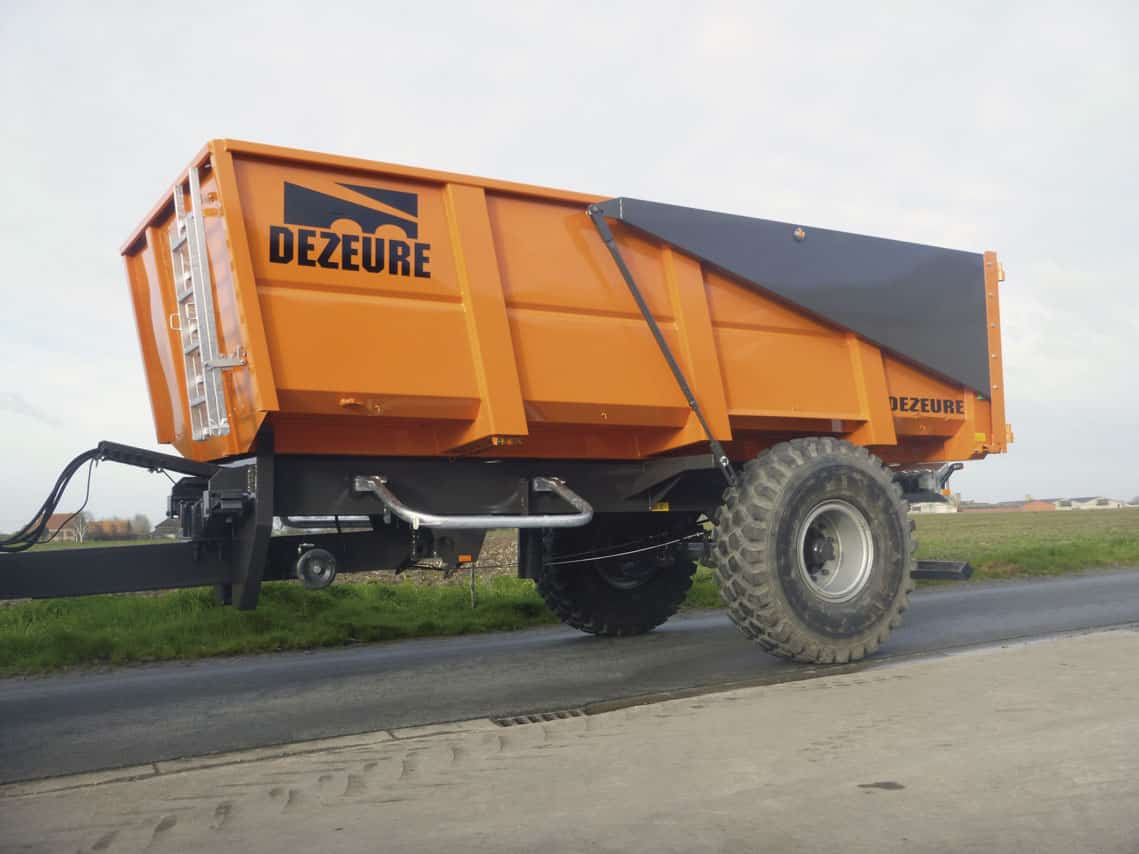

Pictures tipping trailers
